Camera Head and Tripod

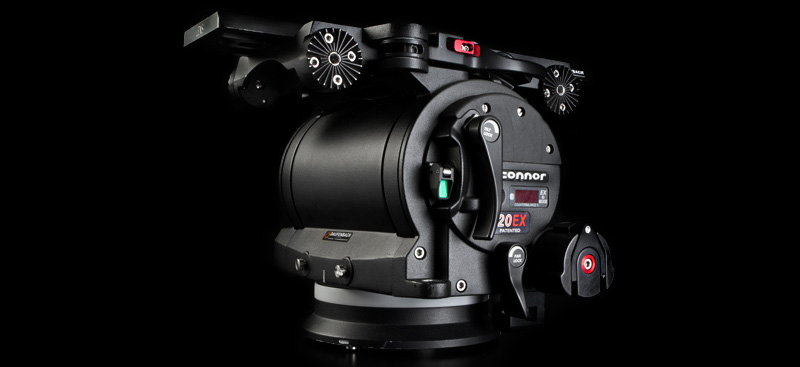

O’Connor 120 Ex Fluid Head

Technical data

Model	120EX & 120EXe
Capacity
@ 8 in. (203 mm) minimum @ 8 in. (203 mm) ± 90° @ 8 in. (203 mm) ± 80° @ 8 in. (203 mm) ± 70° @ 8 in. (203 mm) ± 60°	30 lbs. (14 kg) 120 lbs. (54 kg) 147 lbs. (67 kg) 188 lbs. (85 kg) 240 lbs. (109 kg)
Platform	see below
Handle(s)	30°
Bases	Mitchell
Tilt	+90° / -90°
Height	9.8 in. (24.8 cm)
Width	13.5 in. (34.3 cm)
Depth	10.5 in. (26.6 cm)
Weight	34.1 lbs. (15.5 kg)
Platform for 120EX: OConnor Plate, OConnor Geared Plate, 120mm Euro Plate, Panavision Dovetail Plate, Arriflex Dovetail Plate, Arri 24" (60.96 cm) Plate

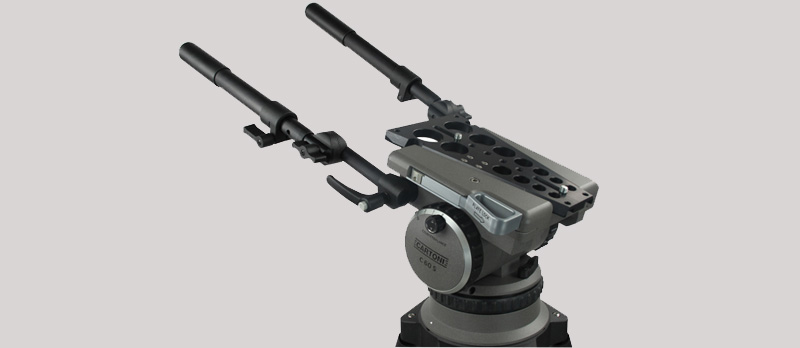

Cartoni C60S

Technical data

STUDIO/OB
Camera capacity  up to  55 Kg - 121 lbs
Commercial code: H 523
USA commercial code: K600

Payload capacity 200 mm (8'') 150 mm (6'') 100 mm (4'')	45 kg (99 lbs) 55 kg (121 lbs) 65 kg (143 lbs)
Weight	11 kg (24 lbs)
Pan range (°)	360°
Tilt range (°)	+/-65°
Counterbalance	4 steps +0
Fluid drag	7 + 7
Bowl diameter	Flat Mitchell/150 mm
Temp. range	-40°/+60°C(-40°/+158°F)
