Monitors

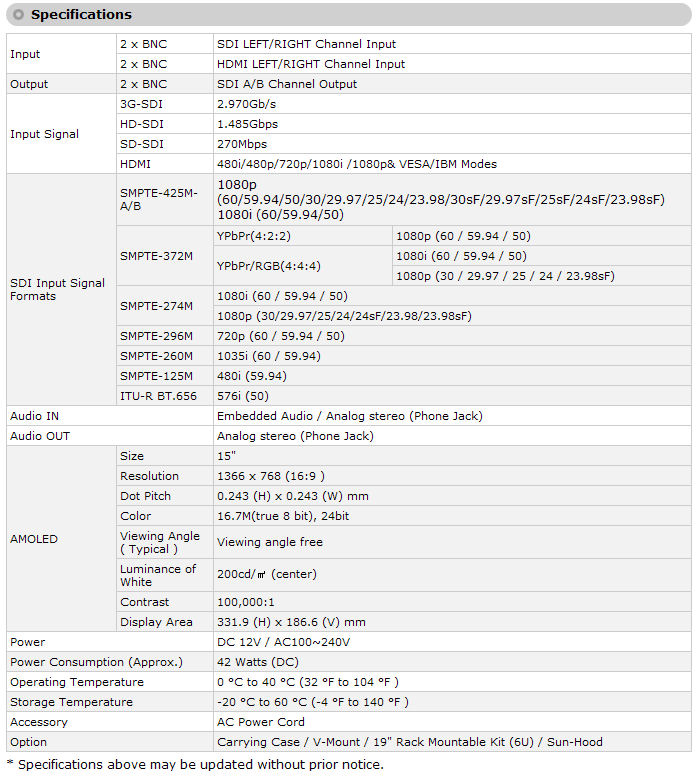

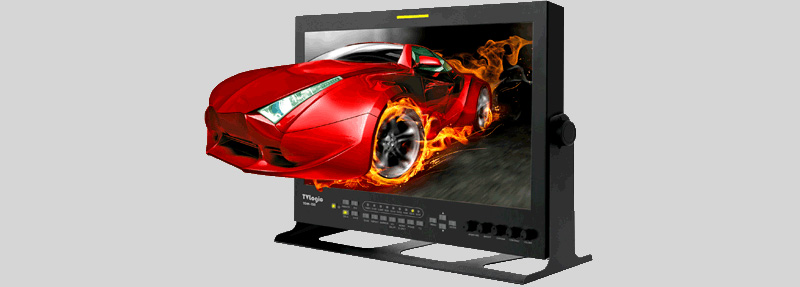

TVLogic TDM-150W

TVLogic TDM-150W

Panasonic BT-3DL2550

Panasonic BT-3DL2550

Technical data

Power Supply:  24 V DC, 4.5 A
5 V DC, 0.03 A
AC Adaptor Input: 100 V / 240 V 50 Hz/60 Hz,
1.6 A / 0.6 A
Dimensions (W × H × D):  599 mm × 440 mm × 220 mm (23-5/8 inches × 17-5/16 inches x 8-11/16 inches) - including stand
599 mm × 410 mm × 100 mm (23-5/8 inches × 16-1/8 inches ×3-15/16 inches) - not including stand
AC Adaptor:  232 mm × 50.5 mm × 177 mm (9-1/8 inches × 2 inches × 6-15/16 inches)
Approx. 1.7 kg (3.5 lb)
Weight:  Approx. 10.3 kg (22.7 lb) (including stand)
Approx. 8.8 kg (19.4 lb) (not including stand)
Operating Temperature::  5 °C to 35 °C (41 °F to 95 °F)
Operating Humidity:  20% to 80% (no condensation)
Storage Temperature:  20 °C to 60 °C (-4 °F to 140 °F)
Display Panel Size:  64.8 cm/25.5 inches
Aspect Ratio:  16:10
Resolution:  1920 pixels × 1200 pixels (WUXGA)
Display colors:  Approx. 16,770,000 colors
Viewing Angle:  178° (both horizontal and vertical)
Panel surface:  Xpol® polarizing panel
Video Input:  VIDEO: BNC × 1
SDI: BNC × 2, SMPTE274M/296M/259M-C/ITU-R BT.656-4 standard with embedded audio
YPBPR/RGB: BNC × 3
SYNC/HD:
BNC × 1, SYNC signal level
0.3 V [p-p] to 4.0 V [p-p]
HD signal level: TTL level
VD: BNC × 1, VD signal level TTL level
DVI-D:
DVI-D × 1,
HDCP compatible, TMDS single link
Vertical frequency: 50.0 Hz to 60.0 Hz
Horizontal frequency: 31.5 kHz to 67.5 kHz
Dot clock: 25 MHz to 165 MHz
Video Output:  VIDEO: BNC × 1, through out (automatic, 75 Ω termination)
SDI: BNC × 2, active through out
YPBPR/RGB: BNC × 3, through out (automatic, 75 Ω termination)
SYNC/HD: BNC × 1, through out (automatic, 1 kΩ termination)
VD: BNC × 1, through out (automatic, 1 kΩ termination)
Pin jack × 2 (stereo):  Signal level 0.5 Vrms
Headphone Output:  Stereo mini-jack M3 × 1, 32 Ω, adjustable level
GPI:  D-SUB 9-pin × 1
RS-232C:  D-SUB 9-pin × 1
External DC Power Input:  XLR 4 pins × 1 (for supplied AC adapter)
Signal Level:  VIDEO System: SYNC signal level: 0.3 V [p-p] to 4.0 V [p-p] HD/VD signal level: TTL level
AUDIO System:
AUDIO Input signal level: 0.5 Vrms
Headphone output:32 Ω, Adjustable level
SDI Embedded AUDIO:
HD SDI: SMPTE299M standard, 48 kHz, 8 channels, synchronous/asynchronous
SD SDI: SMPTE272M standard, 48 kHz, 4 channels, synchronous
Accessories:  3D Polarized Eyewear (BT-PGL10G) × 2, AC Adaptor (DC cable attachment), Power cable, Power cable hook, Screw (for securing power cable)
*Note Regarding 3D Image Viewing
*The perception of 3D effects varies in individuals. Viewing 3D images may cause adverse health effects in rare cases.
*For comfortable 3D viewing, be sure to read the Safety Precautions and Cautions for Use sections in the operation manual.

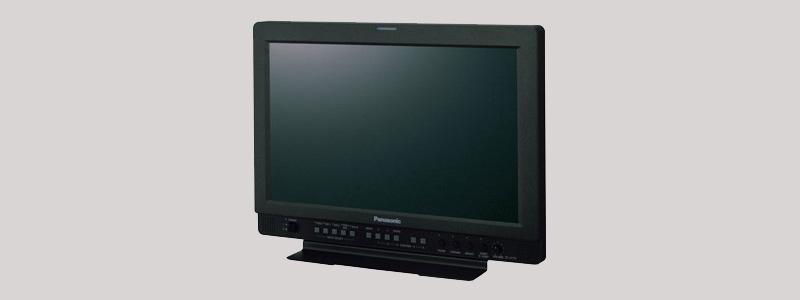

Panasonic BT-LH 1710

Panasonic BT-LH 1710

Technical data

Power Requirement:  AC 100 V to 240 V 50/60 Hz, 0.6 A to 0.3 A
DC 12 V (11 V to 17 V) 4.0 A
Dimensions (WxHxD):  430 mm x 323.5 mm x 198mm (16-15/16" x 12-3/4" x 7-13/16") - Including stand
430 mm x 309 mm x 81.1mm (16-15/16" x 12-3/16" x 3-1/4") - Main unit only; not including stand
Weight:  7.1 kg (15.7 lbs) - Including stand
6.2 kg (13.7 lbs) - not including stand
Operating Temperature:  +5°C to +35°C (41°F to 95°F)
Operating Humidity:  20 % to 80 % (non-dew)
Storage Temperature:  —20°C to +60°C (—4°F to 140°F)
LCD Panel Size:  17.0 inch
Aspect Ratio:  15:9
Resolution:  1,280 x 768 pixels (WXGA)
Display colors:  Approx. 16,770,000 colors
Viewing Angle:  178° (both horizontal and vertical)
Video Input/Output:  Video: BNC x 2 (with through-out connector)
Y/PB/PR. RGB: BNC x 6 (with through-out connector x 3)
SYNC/HD: BNC x 2 (with through-out connector x 1)
VD: BNC x 1
SDI: BNC x 3 (switched-out connector x 1)
DVI-D (HDCP): DVI-D x 1
Vertical frequency: 50.0 Hz to 60.0 Hz
Horizontal frequency: 31.5 KHz to 67.5 KHz
Dot clock: 25 MHz to 165 MHz
Audio input:  Pinjack x 2 (stereo)
Headphone Output:  M3 stereo mini jack x 1
Remote:  GPI: D-SUB, 9 pin RS-232C: D-SUB, 9 pin
External DC Power Input:  XLR, 4pin
Signal Level:  Video:
SYNC signal level: 0.3 Vp-p to 4.0 Vp-p
HD/VD Signal level: TTL level
Audio:
Audio input signal level: 0.5 Vrms
Speaker output: 0.5 W + 0.5 W
Head phone output: 32 ?, Variable Level
SDI Embedded Audio:
HD-SDI : SMPTE299M standard, 48 kHz, 8CH - synchronous/asynchronous
SD-SDI : SMPTE272M standard, 48 kHz, 4CH - synchronous
Accessories:  Supplied: Power Cord Hook, Screw
Optional: Rack mount adaptor, Wall Mount Adaptor, Protective Panel
