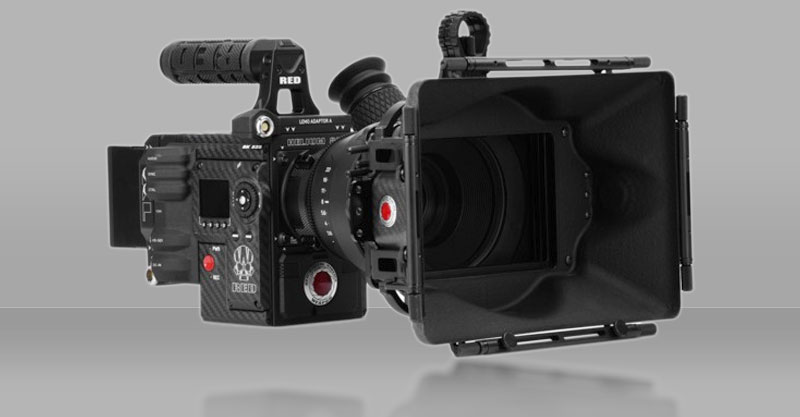

Weapon Helium 8k
At full 8K resolution, the HELIUM sensor captures 35.4 Megapixel motion and stills. Coupled with 60–75 fps, WEAPON 8K S35 provides the most advanced VFX solution with next-level creative flexibility. With other HELIUM sensor advancements, WEAPON 8K boasts improved low-light sensitivity and impressive dynamic range. Blazing-fast 300 MB/s data rates allow you to take advantage of the lowest possible REDCODE—and record proxy 4K Apple ProRes or 4K Avid DNxHR formats, simultaneously.
http://www.red.com/store/products/weapon-brain-with-helium-8k-s35-sensor#specs
Technical data
SENSOR TYPE | HELIUM 35.4 Megapixel CMOS |
EFFECTIVE PIXELS | 8192 × 4320 |
SENSOR SIZE | 29.90 mm x 15.77 mm (Diagonal: 33.80 mm) |
DYNAMIC RANGE | 16.5+ stops |
SIGNAL-TO-NOISE-RATIO | 80 dB |
MAX DATA RATES |
Up to 300 MB/s using RED MINI-MAG (480GB & 960GB) Up to 225 MB/s using RED MINI-MAG (120GB & 240GB) |
MAX FRAME RATES 1 |
60 fps at 8K Full Format (8192 × 4320), 75 fps at 8K 2.4:1 (8192 × 3456) 60 fps at 7K Full Format (7168 × 3780), 75 fps at 7K 2.4:1 (7168 × 3024) 75 fps at 6K Full Format (6144 × 3240), 100 fps at 6K 2.4:1 (6144 × 2592) 96 fps at 5K Full Format (5120 × 2700), 120 fps at 5K 2.4:1 (5120 × 2160) 120 fps at 4K Full Format (4096 × 2160), 150 fps at 4K 2.4:1 (4096 × 1728) 150 fps at 3K Full Format (3072 × 1620), 200 fps at 3K 2.4:1 (3072 × 1296) 240 fps at 2K Full Format (2048 × 1080), 300 fps at 2K 2.4:1 (2048 × 864) |
PLAYBACK FRAME RATES (PROJECT TIMEBASE) |
23.98, 24, 25, 29.97, 47.95, 48, 50, 59.94, 60 fps, all resolutions |
REDCODE SETTINGS RANGE FROM 2:1 UP TO 22:1 1 |
5:1 REDCODE for 8K Full Format (8192 × 4320) at 24 fps 12:1 REDCODE for 8K Full Format (8192 × 4320) at 60 fps 2:1 REDCODE for 4K Full Format (4096 × 2160) at 24 fps 3:1 REDCODE for 4K Full Format (4096 × 2160) at 60 fps |
REDCODE RAW ACQUISITION FORMATS 2 |
8K Full Format (8192 × 4320), 2:1, 2.4:1, 16:9, 3:2, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x 7K Full Format (7168 × 3780), 2:1, 2.4:1, 16:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x 6K Full Format (6144 × 3240), 2:1, 2.4:1, 16:9, 3:2, 4:3, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x 5K Full Format (5120 × 2700), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x 4K Full Format (4096 × 2160), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x 3K Full Format (3072 × 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x 2K Full Format (2048 × 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x |
APPLE PRORES |
422 HQ, 422 and 422 LT at 4K (4096 × 2160) up to 29.97 fps 4444 XQ and 4444 at 2K (2048 × 1080) up to 120 fps 422 HQ, 422 and 422 LT at 2K (2048 × 1080) up to 120 fps |
AVID CODECS 3 |
DNxHR HQX at 4K (4096 × 2160) 12-bit up to 29.97 fps DNxHR HQ, SQ and LB at 4K (4096 × 2160) 8-bit up to 29.97 fps DNxHR 444 at 2K (2048 × 1080) 12-bit up to 120 fps DNxHD 444 and HQX (1920 × 1080) 10-bit up to 120 fps DNxHD HQ, SQ and LB (1920 × 1080) 8-bit up to 120 fps |
CONSTRUCTION | Carbon Fiber, Magnesium, and Aluminum Alloy |
WEIGHT | 3.3 lbs (BRAIN with Integrated Media Bay) |
OPERATING TEMPERATURE | 0°C to 40°C (32°F to 104°F) |
STORAGE TEMPERATURE | –20°C to 50°C (–4°F to 122°F) |
RELATIVE HUMIDITY | 0% to 85% non-condensing |
COLOR MANAGEMENT |
Supports 33×33×33, 32×32×32, 26×26×26, and 17×17×17 3D LUTs Variable number of 3D LUT outputs with DSMC2 expander module User programmable shaper 1D LUTs Tetrahedral interpolation, 16-bit processing |
AUDIO |
Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz Optional 2 additional channels with DSMC2 expander module, uncompressed, 24-bit 48 kHz |
REMOTE CONTROL |
Integrated REDLINK WiFi antenna Ethernet, RS232, and GPI Trigger with DSMC2 expander module |
MONITOR OUTPUTS |
3G-SDI (HD-SDI) and HDMI with DSMC2 expander module 1080p RGB or 4:2:2, 720p RGB or 4:2:2 480p RGB or 4:2:2 (HDMI only) SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio |
MONITOR OPTIONS |
DSMC2 RED Touch 4.7" LCD, DSMC2 RED Touch 7.0" LCD and DSMC2 RED EVF (OLED) with cable-free connection. RED Touch 9.0" LCD, RED Touch 7.0" LCD, RED Touch 5.0" LCD, RED PRO 7" LCD, BOMB EVF (OLED) and BOMB EVF (LCOS) compatible with DSMC2 LEMO Adaptor A and LCD/EVF cable. |
REDCINE-X PRO DELIVERY FORMATS |
4K: DPX, TIFF, OpenEXR (.RED via RRencode plugin) 2K: DPX, TIFF, OpenEXR (.RED via RRencode plugin) 1080p RGB 4:2:2, 720p 4:2:2 : QuickTime, JPEG, AVID AAF, MXF 1080p 4:2:0, 720p 4:2:0 : H.264, .MP4 |
VIDEO EDITING SOFTWARE COMPATIBILITY 4 |
Adobe Premiere Pro, AVID Media Composer, DaVinci Resolve, Edius Pro, Final Cut Pro, Vegas Pro |
Tech specs reflect both current and projected information. Everything is subject to change. |
- REDCODE values and max frame rates may vary based on selected acquisition format, aspect ratio, project time base, Lookaround setting, and SSD. For more information on available REDCODE compression settings for all formats, see the DSMC Media Operation Guide.
- For more information on available acquisition formats, see the DSMC Operation Guides.
- Avid DNxHD/HR Codecs recording support added to DSMC2 firmware v6.3 or later.
- Third-party non-linear editing (NLE) applications may have limited compatibility with R3D files.
